Wall washerXQ-09

 Part Number Wall washer XQ-09
Power 18W/24W
Colour Temperature monochrome/RGB/RGBW
Optics 15°/30°/45°/10*60°/27*29°
Voltage DC24V
LED Quantity 18PCS/24PCS
Control CC/DMX512
Source Brand Cree/Osram/Lumileds/Nichia/Epistar
CRI 80/90
IP IP65/IP66
Attachment none
Color Silver/black/gray
上一頁:
下一頁:
産品描述
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[産品參數, 參數]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]
參數

Performance characteristics

♦Aluminum profile lamp body, compact and light.

♦The light-transmitting part is made of toughened glass.

♦High temperature resistant silicone rubber sealing ring to ensure the reliability of waterproofing.

♦The lamps can be installed individually or in multiple combinations.

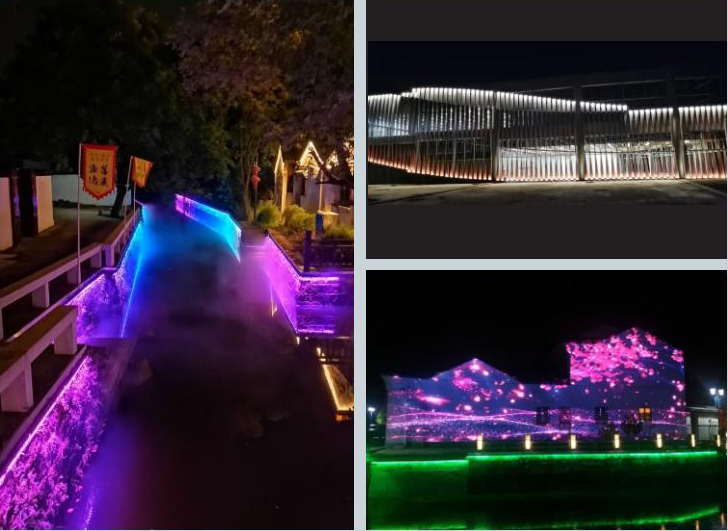

Applications

Suitable for various buildings, indoor and outdoor local or contour lighting.





The shell ismadeof extruded aluminiumprofile.

Heat tempered glass.

Choice of single or multiple installation.

Applications:Applications in building,bridge etc.

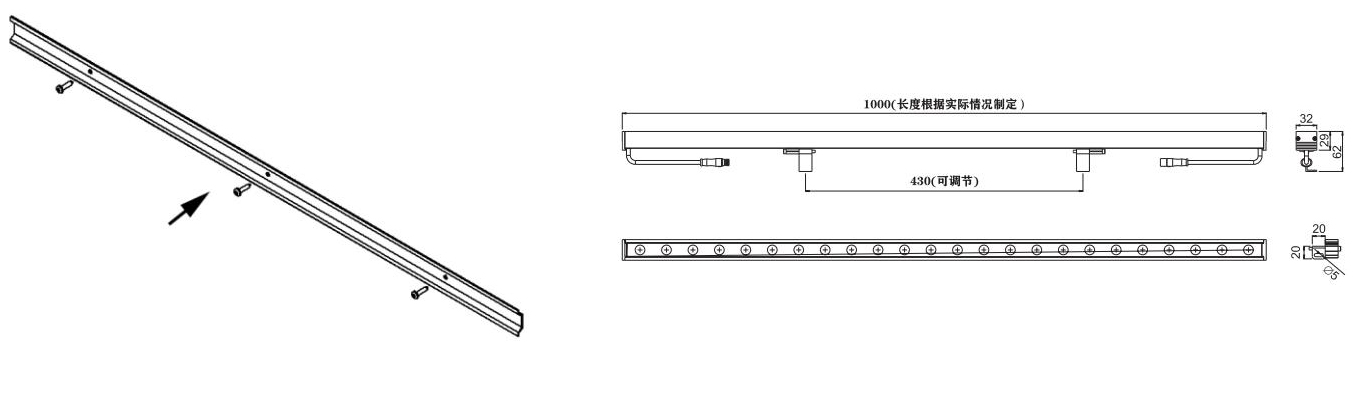

Installation / Size

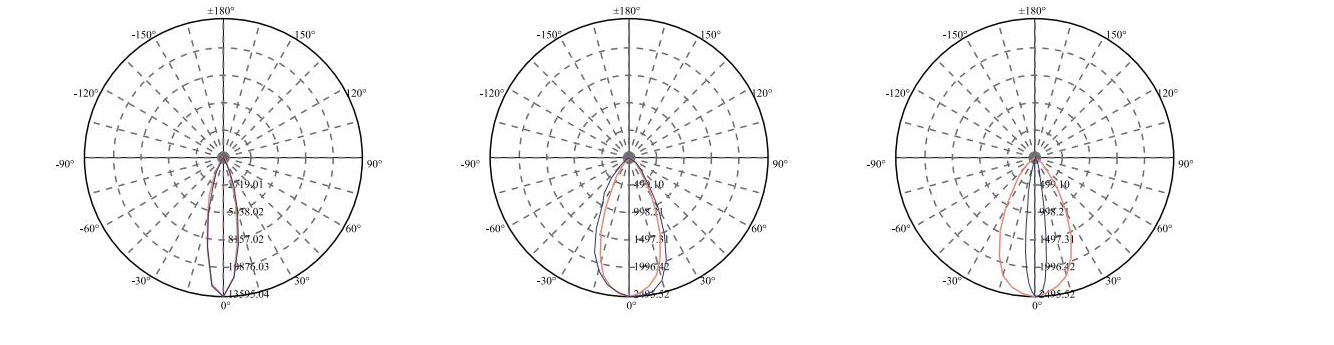

Light Distribution Curve

掃二維碼用手機看
未找到相應參數組,請于後(hòu)台屬性模闆中添加
 Part Number Wall washer XQ-09
Power 18W/24W
Colour Temperature monochrome/RGB/RGBW
Optics 15°/30°/45°/10*60°/27*29°
Voltage DC24V
LED Quantity 18PCS/24PCS
Control CC/DMX512
Source Brand Cree/Osram/Lumileds/Nichia/Epistar
CRI 80/90
IP IP65/IP66
Attachment none
Color Silver/black/gray

Description

産品描述
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[産品參數, 參數]]]]]]]]]]]]]]]]]]]]]]]]]]]]]
參數

Performance characteristics

♦Aluminum profile lamp body, compact and light.

♦The light-transmitting part is made of toughened glass.

♦High temperature resistant silicone rubber sealing ring to ensure the reliability of waterproofing.

♦The lamps can be installed individually or in multiple combinations.

Applications

Suitable for various buildings, indoor and outdoor local or contour lighting.





The shell ismadeof extruded aluminiumprofile.

Heat tempered glass.

Choice of single or multiple installation.

Applications:Applications in building,bridge etc.



Installation / Size

Light Distribution Curve

未找到相應參數組,請于後(hòu)台屬性模闆中添加
 Part Number Wall washer XQ-09
Power 18W/24W
Colour Temperature monochrome/RGB/RGBW
Optics 15°/30°/45°/10*60°/27*29°
Voltage DC24V
LED Quantity 18PCS/24PCS
Control CC/DMX512
Source Brand Cree/Osram/Lumileds/Nichia/Epistar
CRI 80/90
IP IP65/IP66
Attachment none
Color Silver/black/gray
